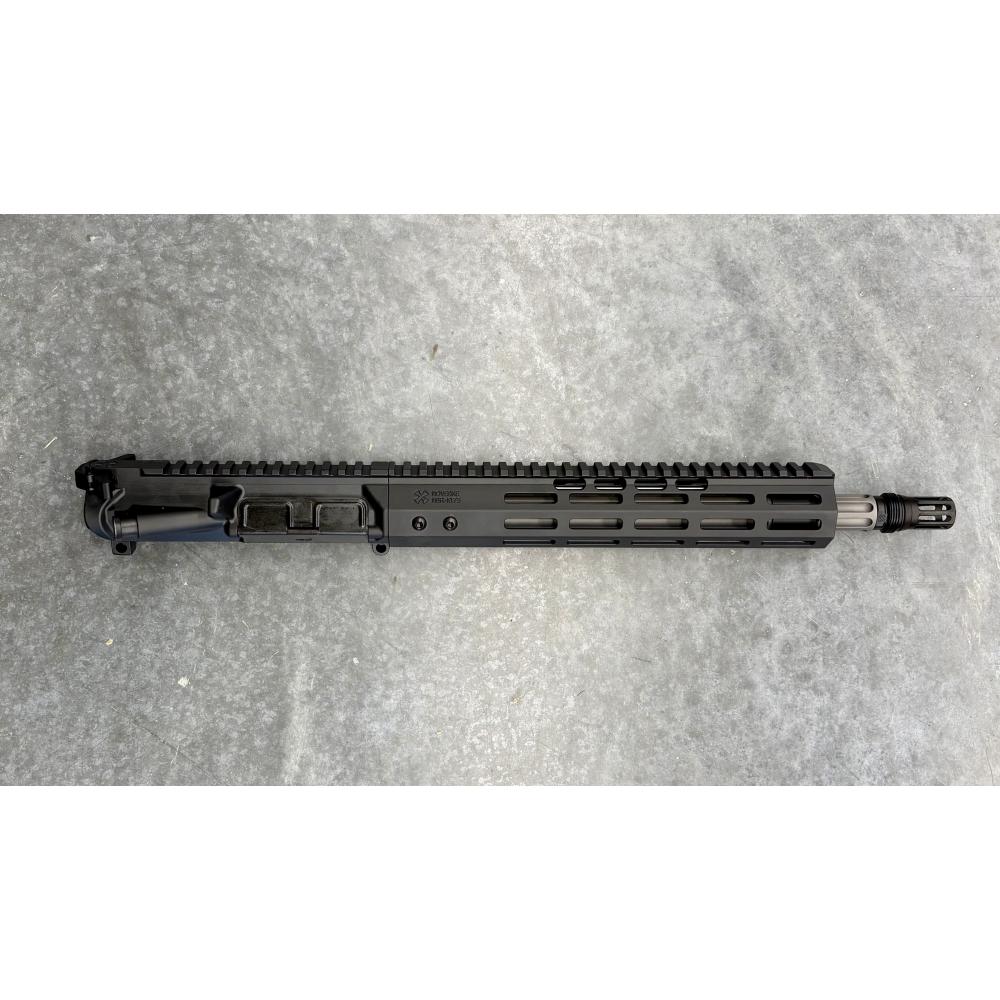

N4 6mm ARC 12.5" DDF Upper BLK

ALL NFA RULES APPLY

Each Noveske upper assembly is precision-engineered for unmatched performance, featuring our Extra Thicc Contour Barrel with Disruptive Deep Fluting (DDF) — a technology born from our Combat Systems Development & Support program, using data from the 2024 TACOM HO Finite Element Analysis (FEA) study.

Barrel

Our barrels are crafted from 416R stainless steel and individually serialized for quality control. Each features a hand-polished Noveske Match Chamber and M4 barrel extension with extended, hand-polished feed ramps for flawless cycling and accuracy.
Available configurations include:

12.5" 6mm ARC with 1:7 twist and 3-land-and-groove rifling

All use a mid-length gas system with a Noveske-marked low-profile gas block (.936” journal). Barrels are finished with a Noveske Pig Pen suppressor-compatible muzzle device, with the 14.5” 5.56mm variant permanently pinned and welded to meet ATF 16” overall length requirements.

Disruptive Deep Fluting (DDF)

The Disruptive Deep Fluting (DDF) is an advanced external barrel structure designed to dramatically reduce both primary (blast compression/expansion) and secondary (sinusoidal resonance) wave events, improving accuracy, reducing heat, and extending barrel life.

Developed to optimize surface area per linear inch without compromising structural integrity, DDF features:

• Seven (7) longitudinal flutes
• A standardized .980? outer diameter with a .125? rounded cut at depth
• A .250? maximum width, fluted along the full barrel length minus a .936? gas block journal
• Up to 32% more surface area for faster cooling
• 25–40% faster heat dissipation and 8–13% weight reduction compared to standard contours

By increasing the barrel’s moment of inertia and reducing multi-axis vibration, DDF helps the projectile maintain a truer trajectory with improved stability. The result is greater accuracy, reduced thermal load, and significantly increased barrel life.

Upper Receiver

Each upper uses the Noveske 4th Generation precision-machined billet receiver, crafted from 7075-T6 aluminum with extended feed ramps. Receivers are hardcoat Type III anodized and finished in Armor Black Cerakote for superior corrosion resistance and long-term durability.

Standard features include:

• Noveske Love Handle ambidextrous charging handle
• Black nitride Noveske-marked forward assist
• Anti-rotation interface with the handguard
• Phosphate-coated, full-auto compatible bolt carrier group, chrome-lined carrier bore and gas key, with Grade 8 American-made staked bolts

The 6mm ARC models feature a DLC Coated Noveske Reinforced 6mm ARC Bolt made from SAE 9310 heat treated steel for superior strength and longevity.

Handguard

All configurations feature the 4th Generation NSR (M-LOK) Free Floating Handguard, available in 10.75” length. M-LOK mounting slots every 45 degrees

• 1913 Picatinny top rail for optics and accessories
• Lightweight, American-made steel barrel nut

Summary

Each component of the Noveske 4th Generation Upper Assembly reflects our commitment to performance, precision, and innovation. From the thermally efficient Disruptive Deep Fluting barrel design to the robust billet receiver and lightweight NSR handguard, every detail is engineered to exceed the expectations of professional users and serious enthusiasts alike.
