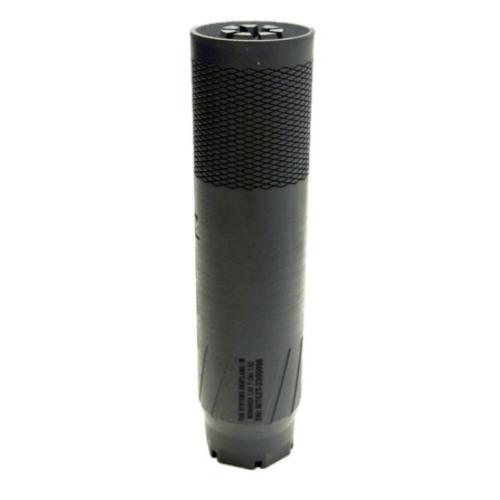

Monarch 7.62 V2 Inconel

Specs:

• Material: 718 Inconel
• Method of Manufacturing: DMLS
• Weight: 20.4 oz
• Length: 7? (without a mount)
• Diameter: 1.75?
• Bore: .30 cal
• Finish: C Series Cerakote (Black)
• No mount is included
• Barrel length restrictions: None
• Full Auto Rating: Be Conservative and allow for cool down time every 270 rounds. Belt Fed rating will be tested in the future

Design Highlights:

• “PFM” Baffle Technology (Preferential Flow Management) is incredibly efficient in both flow regimes while maintaining minimal back pressure
• Venting array helps direct sound away from the shooter and bystanders behind the muzzle
• Incredible flash suppression for a high flow rate design
• 718 Inconel allows for heavy abuse and firing schedule
• DMLS manufacturing method allows for design elements not seen in other technologies
• Maintains suppression efficiency even on small calibers like 5.56
• Integral DMLS printed flash hider end cap
• Knurling design helps with removal/tightening of suppressor by hand
• Wrench flats (1.5?) to help with install or removal of mounting system
• 1.375×24 HUB threads allows user to run mounting system of their choice
• Intended cartridges: .300 BLK, 7.62x39mm, .308 win, 5.56. (.30 cal and smaller)

MONARCH 7.62 USERS MANUAL (Included in the box as well)

Mounts: All 1.375×24 RH TPI Mounts will work. Distance from shoulder to blast baffle is 1.59”. Please check mount and can with an alignment rod while mounted to an empty/unloaded rifle.

Cleaning: We recommend the Monarch 7.62 be cleaned in an ultrasonic cleaner with a Cerakote safe solution every 5000-10,000 rounds or when you feel performance has been reduced. We can do this for a flat fee. See website.

Warranty: If it is our fault, we will take care of you at no expense. If it is your fault, it will be on a case by case basis and up to our discretion. If it is due to gross negligence you will be covering the cost of the repair.
